Where the Go Getter is at!
Firewall Forward
IO 360B1B
325 SMOH
Raven Inverted Oil
|
|

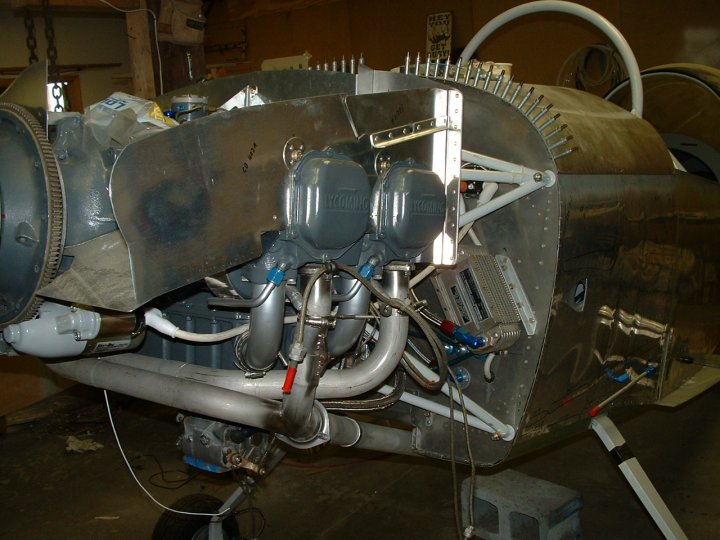

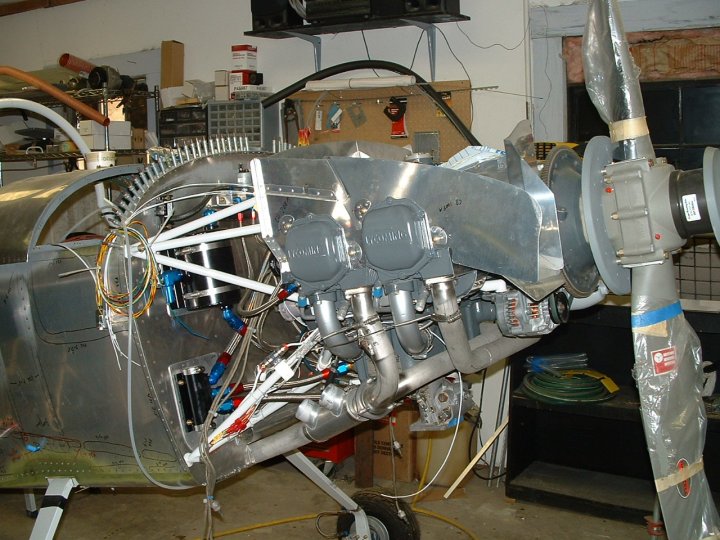

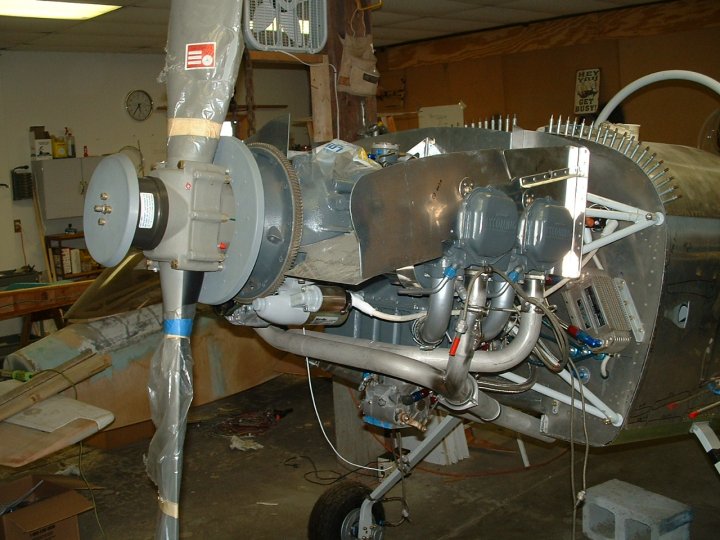

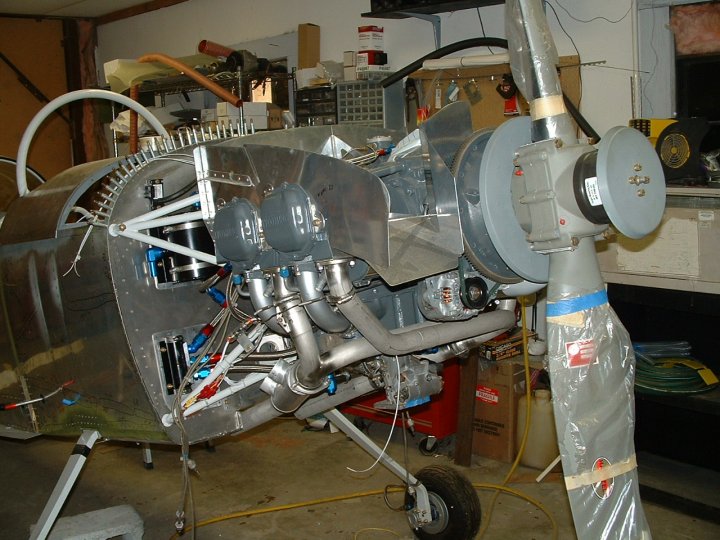

Well here it is. The big purchase I thought I would never get to. Lycoming IO 360B1b with a Hartzell CS prop. |
|
|

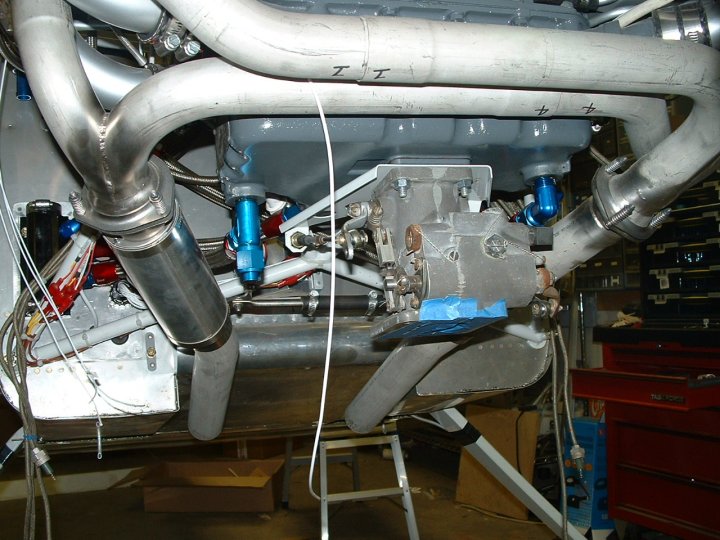

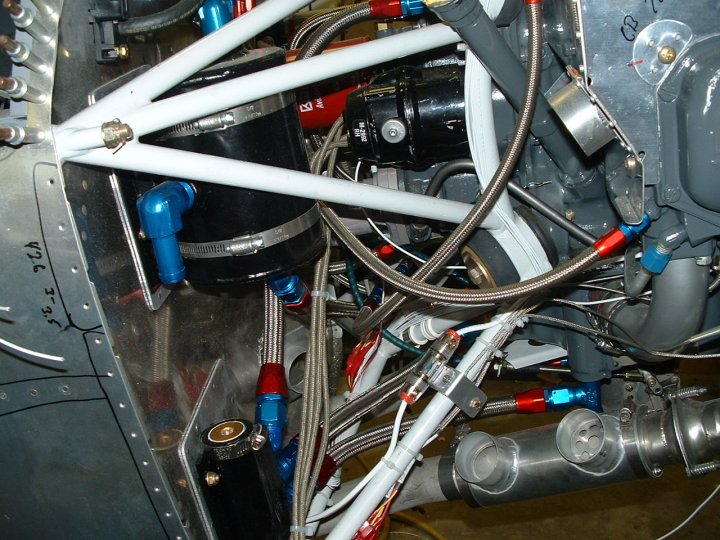

Shot of the Raven inverted oil system. Nice system to work with. Remember to order the special fitting for the sump so that the oil line will miss the engine mount. |
|
|
Another shot of the Raven system. All stainless hose and fittings were ordered from Summit Racing at a very substantial savings. In looking at just the inverted system needs, Christen sells a deluxe hose and fittings kit for a little over 1100.00. I took those part numbers and purchased the exact same items from summit for a little over 300.00. I'll put the balance in the panel. ;-) |
|
|
Fuel flow turbine from Dynon |
|
|

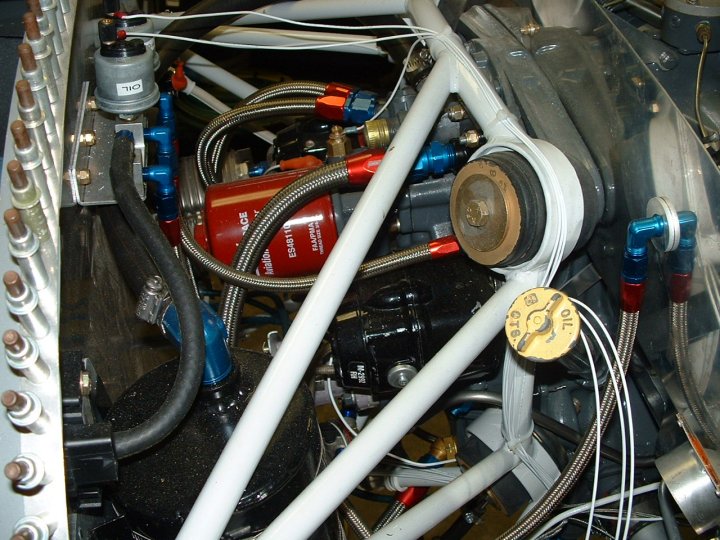

Firewall mounted oil cooler. Next I will need to make the plenum for the air from the baffles |
|
|
Another shot from the other side |
|
|
Kind'a like the one above. |
|
|
And the right side |
|
|

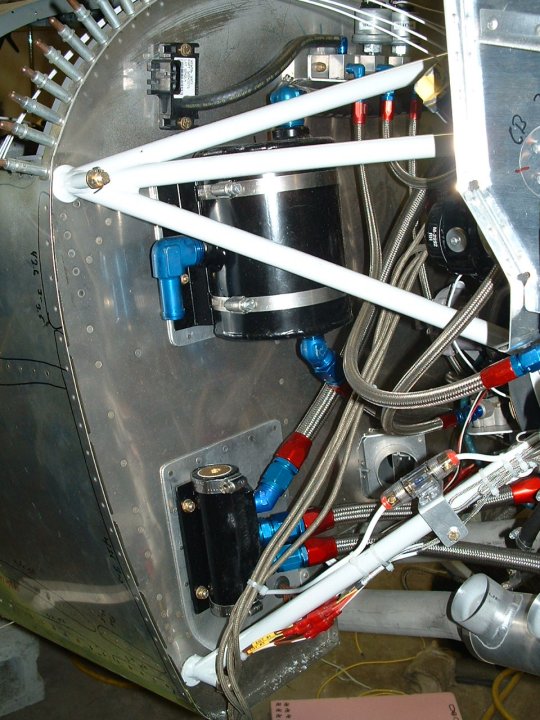

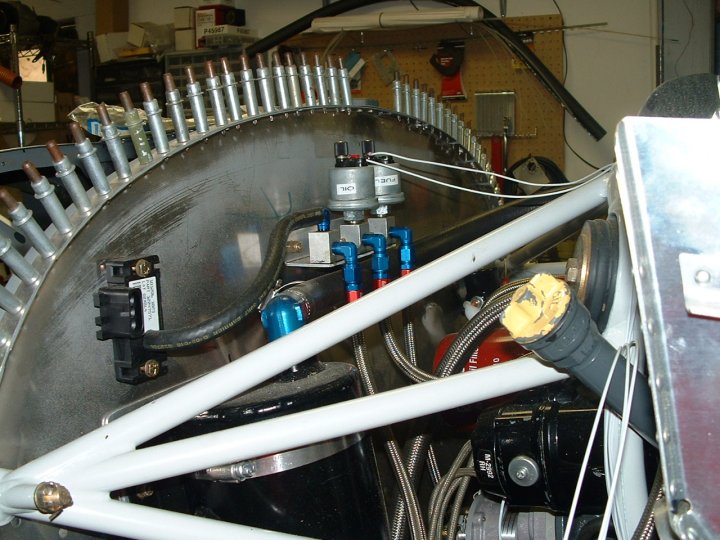

Pressure sensors mounted on the firewall and plumbed to their respective ports |
|
|

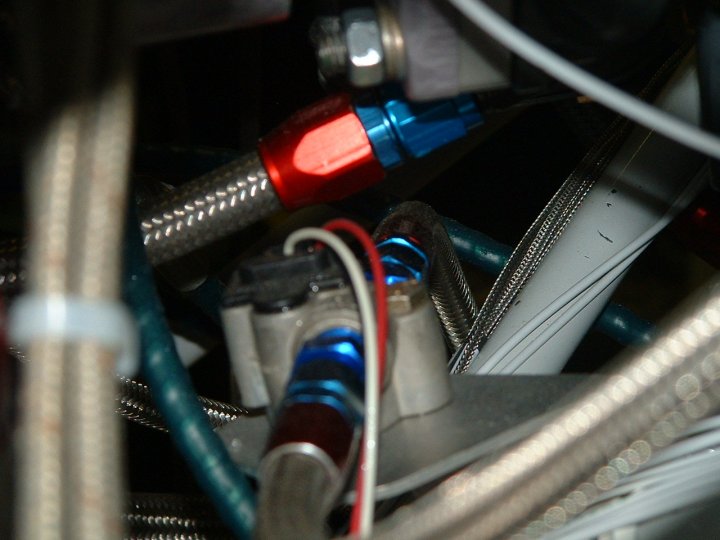

All that plumbing. All done in stainless. |
|
|
Bottom side. |
|
|

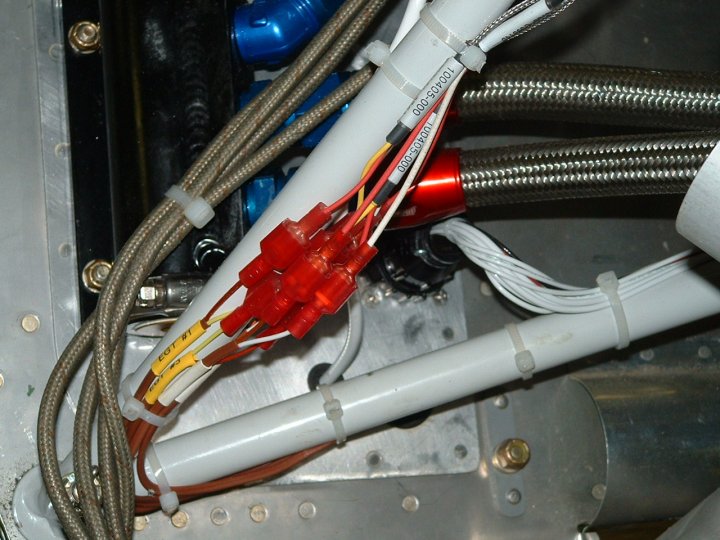

Entire engine harness with the exception of themain battery wire, the main alt wire, EGT and CHT goes into one AMP plug. If the engine needs to come off, one plug is all it takes to undo the wiring. Hopefully I won't need it! |
|
|

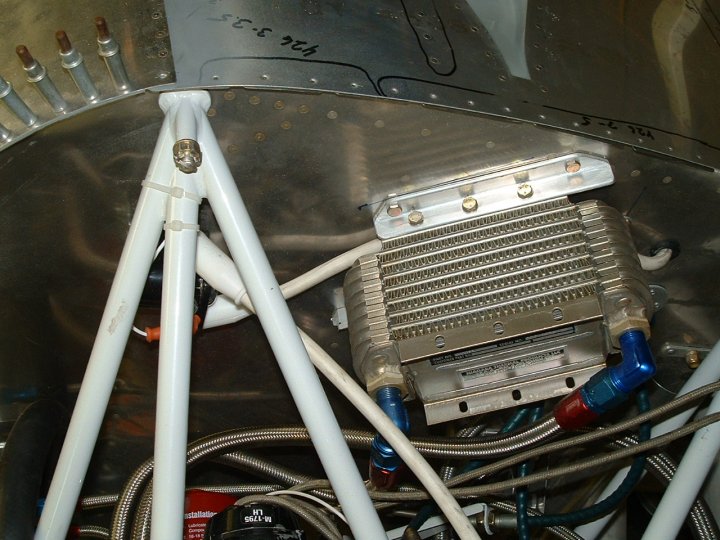

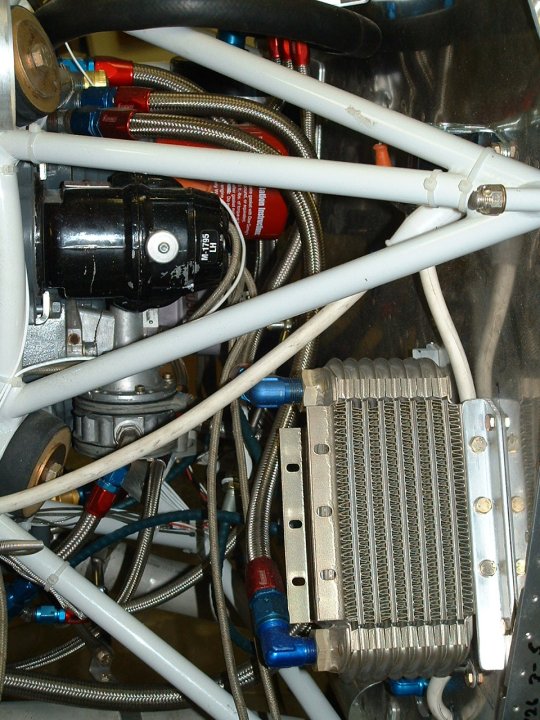

Another shot of the oil cooler |
